Construct Struct Reference

The API class that coordinates the transfer of information between classes. More...

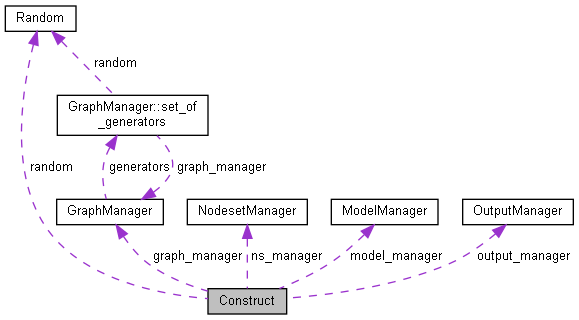

Collaboration diagram for Construct:

Public Member Functions
	Construct ()
	Distributes pointers, prints the version number, records starting time, and sets dynet::end_early::stop = false.
void	load_from_xml (const std::string &fname)
	Imports information from a Construct input xml file in to Construct More...
bool	run ()
	Runs the simulation. More...
bool	contains_parser (const std::string &name)
	Returns true if the named parser is contained in Construct::message_parsers, false otherwise.
void	addMessage (const InteractionMessage &msg) noexcept
	If the message is valid, its added to the front of the interaction_message_queue.
void	addMessage (InteractionMessage &&msg) noexcept
	If the message is valid, its added to the front of the interaction_message_queue. More...
bool	intercept (InteractionItem &item, unsigned int sender, unsigned int receiver, const CommunicationMedium *medium)

Public Attributes
time_t	begTim = 0
	Time set at construction.
time_t	loadtime = 0
time_t	simulation_start = 0
time_t	cycle_start = 0
time_t	cycle_end = 0
time_t	simulation_end = 0
Random	random
	The manager that produces random variables and ensures exact reproduction of results given a random seed.
NodesetManager	ns_manager
	The manager that holds all nodesets.
GraphManager	graph_manager
	The manager that holds all graphs/networks.
ModelManager	model_manager
	The manager that holds all the models and executes all of their various functions.
OutputManager	output_manager
	The manager that holds all outputs.
std::set< InteractionMessageParser * >	message_parsers
	Holds all parsers that parse messages before models.
std::list< InteractionMessage >	interaction_message_queue
	Messages in this queue are dispersed to the Model::communicate function and are cleared at the very end of a simulation cycle.
std::string	working_directory = ""
	Directory for output.
std::string	custom_library = ""
	File containing custom model and output library
unsigned int	current_time = 0
	The current time period
unsigned int	time_count = 1
	The size of the time nodeset and total number of time periods. Defaults to 1 when no time nodeset is found.
bool	verbose_initialization = false
	Set to true if a verbose initialization is requested. More...
bool	verbose_runtime = false
	Set to true if a verbose runtime is requested. More...

Static Public Attributes
static constexpr const char *	version = "5.4.4"
static std::function< void(Construct &)>	constructor_output
static std::function< void(Construct &)>	loading_complete_output
static std::function< void(Construct &)>	simulation_start_output
static std::function< void(Construct &)>	cycle_end_output
static std::function< void(Construct &)>	simulation_complete_output

Detailed Description

The API class that coordinates the transfer of information between classes.

This class primarily deals with 5 class managers and runs the main sequence of the program execution. Through this class the managers can communicate and request information, typically pointers to data structures. This class also executes the main loop that progresses the simulation over time.

Member Function Documentation

addMessage()

void Construct::addMessage ( InteractionMessage &&  msg )

inlinenoexcept

If the message is valid, its added to the front of the interaction_message_queue.

summary> Calls and ands each return from each loaded model's Model::intercept.

load_from_xml()

void Construct::load_from_xml

(

const std::string &

fname

)

Imports information from a Construct input xml file in to Construct

Parameters

fname

The filename with either an absolute or relative path.

run()

bool Construct::run

(

)

Runs the simulation.

Begins the simulation cycle starting with initilaizing all models. All the contents of the simulation is contained in try catch statement. If any exceptions are raised, they are printed and this function will return false. Otherwise if the simulation completes, true is returned.

Returns

True if the simulation was completed, false otherwise.

Exception Safety

This function can only be called once. An assertion is raised if the function is called a second time on the same Construct instance.

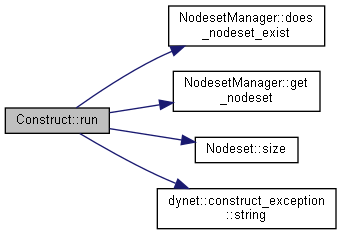

Here is the call graph for this function:

Member Data Documentation

constructor_output

std::function< void(Construct &)> Construct::constructor_output

static

Initial value:

= [](Construct& construct) {
    dynet::cout << "Start time: " << std::ctime(&construct.begTim) << dynet::endl; }

cycle_end_output

std::function< void(Construct &)> Construct::cycle_end_output

static

Initial value:

= [](Construct& construct) {
    dynet::cout << "Time step " << construct.current_time << " completed. Elapsed Time: ";
    dynet::cout << (unsigned)(construct.cycle_end - construct.cycle_start) << " seconds" << dynet::endl << dynet::endl; }

loading_complete_output

std::function< void(Construct &)> Construct::loading_complete_output

static

Initial value:

= [](Construct& construct) {
    dynet::cout << "Construct loading complete. Elapsed time: ";
    dynet::cout << (float)std::difftime(construct.loadtime, construct.begTim) << " second." << dynet::endl; }

simulation_complete_output

std::function< void(Construct &)> Construct::simulation_complete_output

static

Initial value:

= [](Construct& construct) {
    dynet::cout << "Construct simulation complete." << dynet::endl;
    dynet::cout << "End time: " << std::ctime(&construct.simulation_end) << ", Elapsed time : ";
    dynet::cout << (float)std::difftime(construct.simulation_end, construct.simulation_start) << " second." << dynet::endl; }

simulation_end

time_t Construct::simulation_end = 0

summary>

simulation_start_output

std::function< void(Construct &)> Construct::simulation_start_output

static

Initial value:

= [](Construct& construct) {
    dynet::cout << "Construct simulation start time: " << std::ctime(&construct.simulation_start) << dynet::endl; }

verbose_initialization

bool Construct::verbose_initialization = false

Set to true if a verbose initialization is requested.

In general a verbose initialization increases the amount of information the end user receives when initializing the simulation.

verbose_runtime

bool Construct::verbose_runtime = false

Set to true if a verbose runtime is requested.

In general a verbose runtime increases the amount of information the end user receives when during run time. This includes readouts when the simulation executes model functions such as think and cleanup.
