Model Struct Reference

Parent class for Construct models. More...

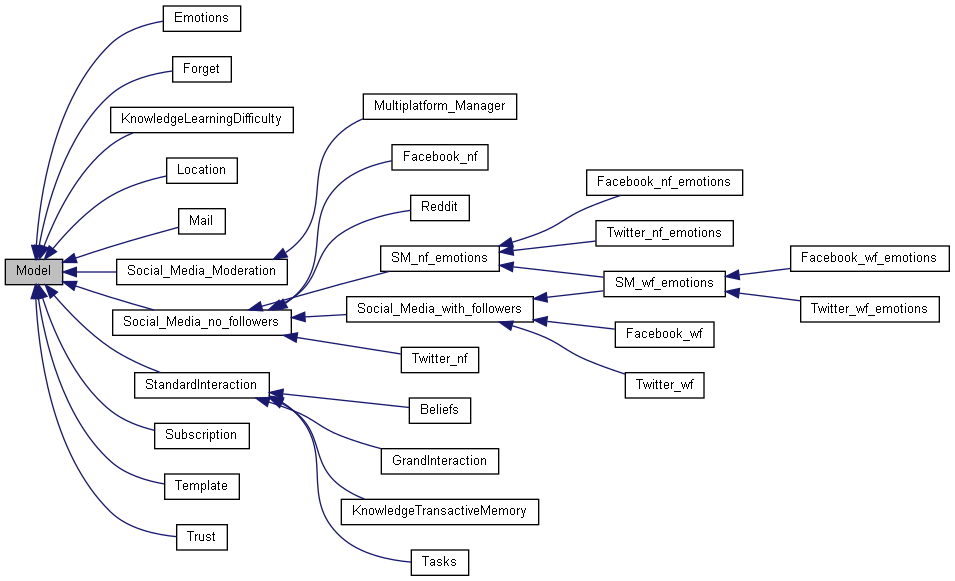

Inheritance diagram for Model:

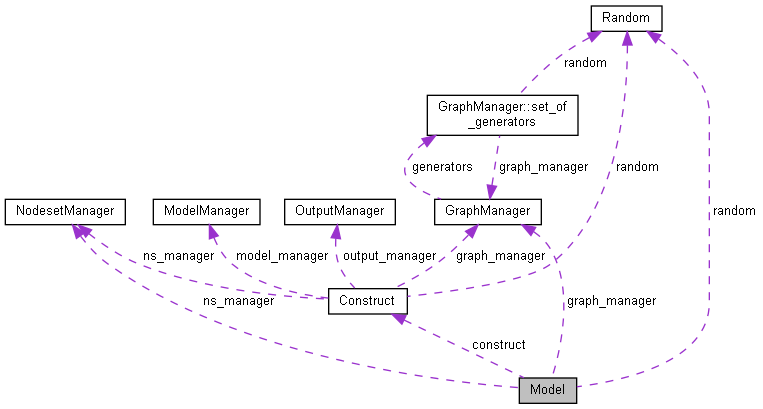

Collaboration diagram for Model:

Public Member Functions
	Model (Construct &_construct)
	Constructor for all models in Construct. More...
virtual	~Model (void)
	Virtual Deconstructor. More...
virtual void	initialize (void)
	Function called once before any simulation cycles begin. More...
virtual void	think (void)
	First function called in a simulation cycle. More...
virtual void	update (void)
	Function called after the think functions in a simulation cycle. More...
virtual bool	intercept (InteractionItem &item, unsigned int sender, unsigned int receiver, const CommunicationMedium *medium)
	Allows for models to effect change to items created by other models. More...
virtual void	communicate (const InteractionMessage &msg)
	Function called after the update functions in a simulation cycle. More...
virtual void	cleanup (void)
	Function called after the Model::communicate functions in a simulation cycle. More...
void	add_base_model_to_model_manager (const std::string &base_model_name)
	Adds a derived model under the name of the base model and disables the model manager from calling its functions.

Public Attributes
Construct &	construct
GraphManager &	graph_manager
NodesetManager &	ns_manager
Random &	random
bool	valid
	If member is false, the model's functions are not called.

Detailed Description

Parent class for Construct models.

This parent class allows all model pointers to be stored in the same array. All models are required to have a custom constructor, and 5 real functions to take the place of the virtual functions. A deconstructor is not required for models. By default models are considered valid unless explicitly stated otherwise. Non-valid models won't have their virtual functions called.

summary>

Constructor & Destructor Documentation

Model()

Model::Model

(

Construct &

_construct

)

Constructor for all models in Construct.

All models require the Construct pointer and the name of the model to be defined. The Construct pointer is transferred via ModelManager::create_model which Construct passes to the ModelManager. All model names can be found in the namespace model_names. All models are valid by default unless otherwise stated. If a model is not valid, its functions are not called by the ModelManager.

~Model()

virtual Model::~Model ( void  )

inlinevirtual

Virtual Deconstructor.

Deconstructor is virtual so that when a Model is deallocated by the ModelManager, the derived model's deconstructor is also called. This virtual deconstructor preforms no operations.

Member Function Documentation

cleanup()

virtual void Model::cleanup ( void  )

inlinevirtual

Function called after the Model::communicate functions in a simulation cycle.

End of cycle calculations are done during this function. Model::cleanup is called after GraphManager::push_deltas is called.

Reimplemented in SM_wf_emotions, KnowledgeTransactiveMemory, Subscription, Beliefs, Emotions, Forget, GrandInteraction, Trust, Location, Social_Media_no_followers, Social_Media_with_followers, Tasks, and Template.

communicate()

virtual void Model::communicate ( const InteractionMessage &  msg )

inlinevirtual

Function called after the update functions in a simulation cycle.

Messages are typically parsed in this function.

Reimplemented in Emotions, SM_wf_emotions, Forget, GrandInteraction, KnowledgeTransactiveMemory, Trust, Social_Media_no_followers, Social_Media_with_followers, Subscription, and Template.

initialize()

virtual void Model::initialize ( void  )

inlinevirtual

Function called once before any simulation cycles begin.

Reimplemented in Facebook_nf_emotions, Twitter_nf_emotions, Facebook_wf_emotions, Twitter_wf_emotions, Social_Media_Moderation, Multiplatform_Manager, Facebook_wf, Twitter_wf, Beliefs, SM_wf_emotions, GrandInteraction, KnowledgeTransactiveMemory, Trust, Location, Reddit, Social_Media_no_followers, StandardInteraction, Tasks, and Template.

intercept()

virtual bool Model::intercept ( InteractionItem &  item, unsigned int  sender, unsigned int  receiver, const CommunicationMedium *  medium  )

inlinevirtual

Allows for models to effect change to items created by other models.

A model change add, modify, or remove information from an item based other submitted information. Also allows for models to control what InteractionItems get created. Senders and receiver indexes can include values from 0 to and including the size of the agent nodeset. Always check if the index is equal to the agent nodeset size before accessing a node or network value. The medium can be a node in the medium nodeset, a medium for a specific model, or a null pointer. Always check that a node is not a null pointer before derefrencing it. Complexity and exceptions depend entirely on each models specific implementation. By default, models allow items to be created without modifying them.

Parameters

item	The InteractionItem that is being created. This item can modified as each model sees fit.
sender	The index for the agent that is the source of the InteractionItem.
receiver	The index for the agent that is receiving the item. If the item does not have an intended recipient, its value will equal the agent nodeset size.
medium	The communication medium intended for the item. If the medium is not yet chosen, it will be a null pointer. The medium may or may not be in the medium nodeset and there are no restraints on what index the medium could have.

Returns

Whether the item should be allowed to continue to exist (false) or if item should be discarded (true).

Example

InteractionItem item;
item.set_knowledge(5);
knowledge_trust_net.at(4, 5) = 0.2;
construct.model_manager.get_model(model_names::TRUST).intercept(item, 4, 3, nullptr);
auto [k, trust] = item.get_knowledge_trust();
std::cout << trust << std::endl;

Output:

0.2

Reimplemented in Emotions, KnowledgeLearningDifficulty, Trust, and Social_Media_Moderation.

think()

virtual void Model::think ( void  )

inlinevirtual

First function called in a simulation cycle.

Messages are typically created in this function.

Reimplemented in Subscription, Forget, Location, Social_Media_no_followers, StandardInteraction, and Template.

update()

virtual void Model::update ( void  )

inlinevirtual

Function called after the think functions in a simulation cycle.

Messages are typically amended and/or removed in this function.

Reimplemented in Trust, Mail, and Template.

Member Data Documentation

construct

Construct& Model::construct

summary>

graph_manager

GraphManager& Model::graph_manager

summary>

ns_manager

NodesetManager& Model::ns_manager

summary>
