Mail Class Reference

A modification model which causes delays in the transmission of messages. More...

Inheritance diagram for Mail:

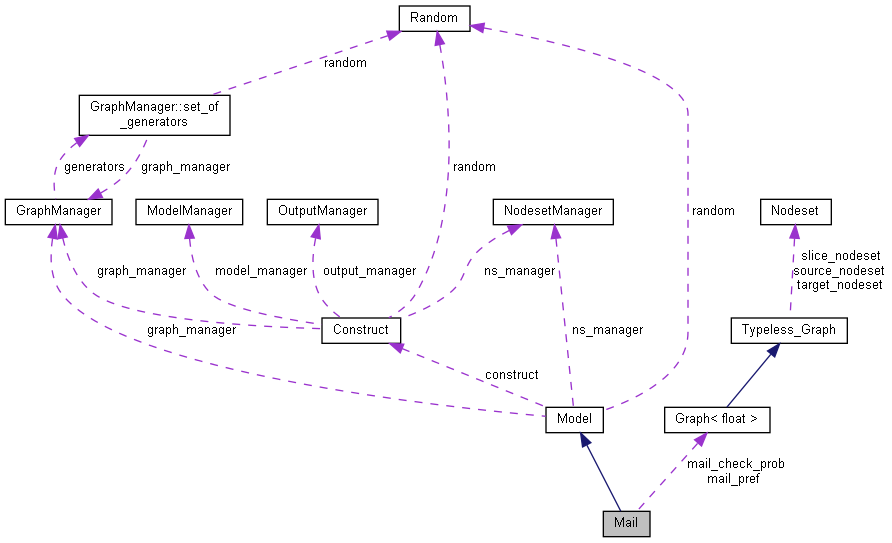

Collaboration diagram for Mail:

Public Member Functions
	Mail (Construct &construct)
void	update (void) override
	For each message in Construct::interaction_message_queue the message is added the sender's entry in Mail::mailboxes with probability using the sender's index and communication index in Mail::mail_pref. If the message is moved into Mail::mailboxes, the message is removed from Construct::interaction_message_queue. Then each agent checks their mail with probability from Mail::mail_check_prob. If an agent checks their mail, their entry in Mail::mailboxes are added to Construct::interaction_message_queue and that entry in Mail::mailboxes is cleared. More...
Public Member Functions inherited from Model
	Model (Construct &_construct)
	Constructor for all models in Construct. More...
virtual	~Model (void)
	Virtual Deconstructor. More...
virtual void	initialize (void)
	Function called once before any simulation cycles begin. More...
virtual void	think (void)
	First function called in a simulation cycle. More...
virtual void	update (void)
	Function called after the think functions in a simulation cycle. More...
virtual void	communicate (const InteractionMessage &msg)
	Function called after the update functions in a simulation cycle. More...
virtual void	cleanup (void)
	Function called after the Model::communicate functions in a simulation cycle. More...
void	add_base_model_to_model_manager (const std::string &base_model_name)
	Adds a derived model under the name of the base model and disables the model manager from calling its functions.

Public Attributes
Graph< float > &	mail_pref = graph_manager.load_optional(graph_names::mail_usage, 1.0f, nodeset_names::agents, sparse, nodeset_names::comm, sparse)
Graph< float > &	mail_check_prob = graph_manager.load_optional(graph_names::mail_check_prob, 0.5f, nodeset_names::agents, sparse, nodeset_names::time, sparse)
std::vector< InteractionMessageQueue >	mailboxes = std::vector<InteractionMessageQueue>(mail_pref.source_nodeset->size())
Public Attributes inherited from Model
Construct &	construct
GraphManager &	graph_manager
NodesetManager &	ns_manager
Random &	random
bool	valid
	If member is false, the model's functions are not called.

Detailed Description

A modification model which causes delays in the transmission of messages.

Member Function Documentation

update()

void Mail::update ( void  )

overridevirtual

For each message in Construct::interaction_message_queue the message is added the sender's entry in Mail::mailboxes with probability using the sender's index and communication index in Mail::mail_pref. If the message is moved into Mail::mailboxes, the message is removed from Construct::interaction_message_queue. Then each agent checks their mail with probability from Mail::mail_check_prob. If an agent checks their mail, their entry in Mail::mailboxes are added to Construct::interaction_message_queue and that entry in Mail::mailboxes is cleared.

Reimplemented from Model.

Here is the call graph for this function:

Member Data Documentation

mail_check_prob

Graph<float>& Mail::mail_check_prob = graph_manager.load_optional(graph_names::mail_check_prob, 0.5f, nodeset_names::agents, sparse, nodeset_names::time, sparse)

summary>

mail_pref

Graph<float>& Mail::mail_pref = graph_manager.load_optional(graph_names::mail_usage, 1.0f, nodeset_names::agents, sparse, nodeset_names::comm, sparse)

summary>

mailboxes

std::vector<InteractionMessageQueue> Mail::mailboxes = std::vector<InteractionMessageQueue>(mail_pref.source_nodeset->size())

summary>
