Subscription Struct Reference

A modification model that forwards messages that are made public to subscribers. More...

Inheritance diagram for Subscription:

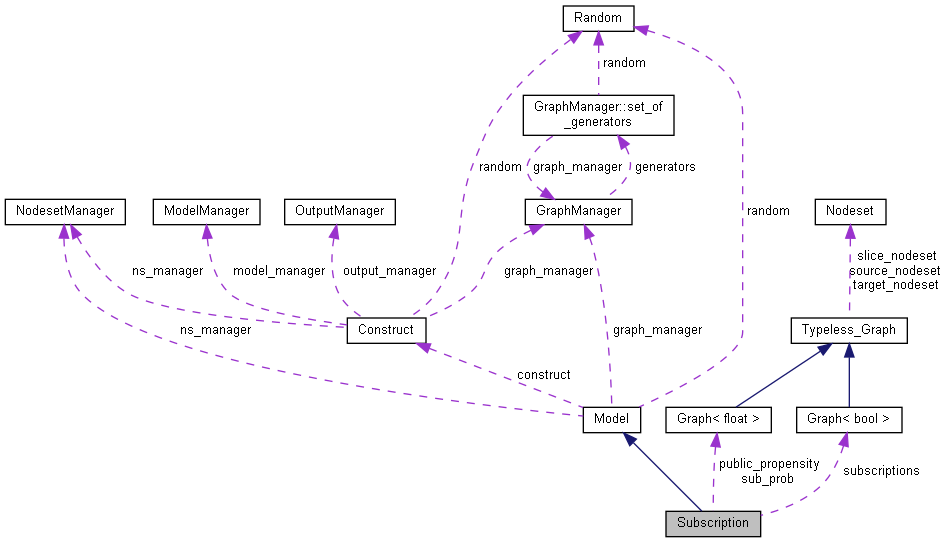

Collaboration diagram for Subscription:

Public Member Functions
	Subscription (Construct &construct)
void	think () override
	Each message in Subscription public_queue is copied for each person that subsribes to the message's sender from Subscription::subscriptions. The receiver is then modified in the copied message and set to the subscriber's index. More...
void	communicate (const InteractionMessage &msg) override
	Messages that are communicated are added to Subscription::public_queue with probability from Subscription::public_propensity. More...
void	cleanup () override
	Agents subscribe to the sender of each message in Subscription::public_queue with probability from Subscription::sub_prob. More...
Public Member Functions inherited from Model
	Model (Construct &_construct)
	Constructor for all models in Construct. More...
virtual	~Model (void)
	Virtual Deconstructor. More...
virtual void	initialize (void)
	Function called once before any simulation cycles begin. More...
virtual void	think (void)
	First function called in a simulation cycle. More...
virtual void	update (void)
	Function called after the think functions in a simulation cycle. More...
virtual bool	intercept (InteractionItem &item, unsigned int sender, unsigned int receiver, const CommunicationMedium *medium)
	Allows for models to effect change to items created by other models. More...
virtual void	communicate (const InteractionMessage &msg)
	Function called after the update functions in a simulation cycle. More...
virtual void	cleanup (void)
	Function called after the Model::communicate functions in a simulation cycle. More...
void	add_base_model_to_model_manager (const std::string &base_model_name)
	Adds a derived model under the name of the base model and disables the model manager from calling its functions.

Public Attributes
const Graph< float > &	public_propensity
Graph< bool > &	subscriptions
const Graph< float > &	sub_prob
std::list< InteractionMessage >	public_queue
Public Attributes inherited from Model
Construct &	construct
GraphManager &	graph_manager
NodesetManager &	ns_manager
Random &	random
bool	valid
	If member is false, the model's functions are not called.

Detailed Description

A modification model that forwards messages that are made public to subscribers.

Member Function Documentation

cleanup()

void Subscription::cleanup ( void  )

overridevirtual

Agents subscribe to the sender of each message in Subscription::public_queue with probability from Subscription::sub_prob.

summary>

Reimplemented from Model.

Here is the call graph for this function:

communicate()

void Subscription::communicate ( const InteractionMessage &  msg )

overridevirtual

Messages that are communicated are added to Subscription::public_queue with probability from Subscription::public_propensity.

Reimplemented from Model.

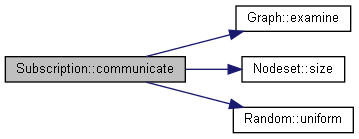

Here is the call graph for this function:

think()

void Subscription::think ( void  )

overridevirtual

Each message in Subscription public_queue is copied for each person that subsribes to the message's sender from Subscription::subscriptions. The receiver is then modified in the copied message and set to the subscriber's index.

Reimplemented from Model.

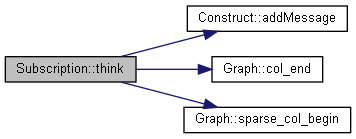

Here is the call graph for this function:

Member Data Documentation

public_propensity

const Graph<float>& Subscription::public_propensity

Initial value:

= graph_manager.load_optional(graph_names::propensity,
        0.01f, nodeset_names::agents, sparse, nodeset_names::comm, sparse)

summary>

sub_prob

const Graph<float>& Subscription::sub_prob

Initial value:

= graph_manager.load_optional(graph_names::sub_probability,
        0.01f, nodeset_names::agents, sparse, nodeset_names::agents, sparse)

summary>

subscriptions

Graph<bool>& Subscription::subscriptions

Initial value:

= graph_manager.load_optional(graph_names::subs,
        false, nodeset_names::agents, sparse, nodeset_names::agents, sparse)

summary>
